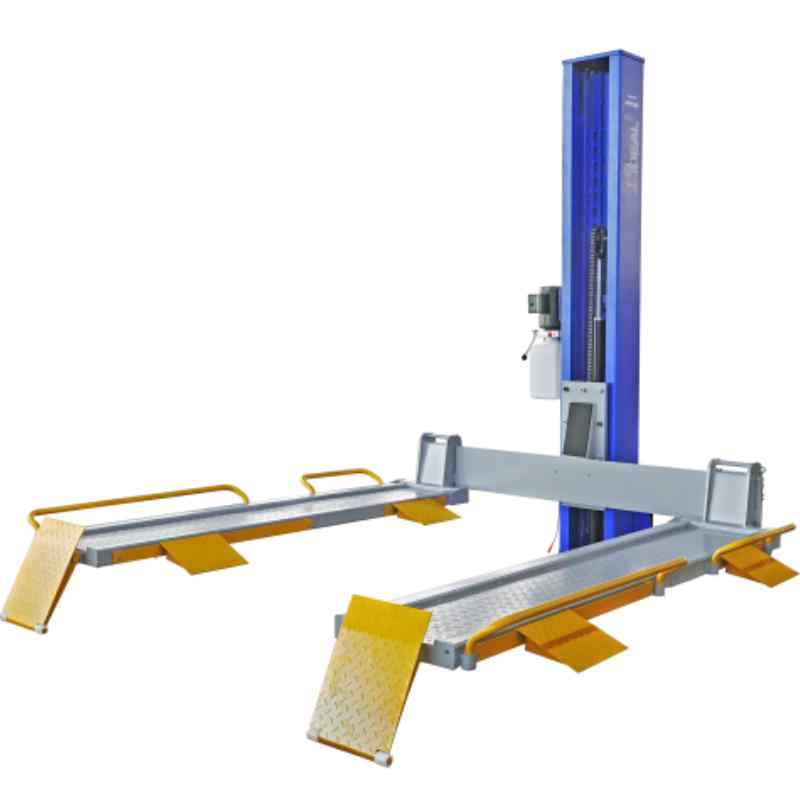

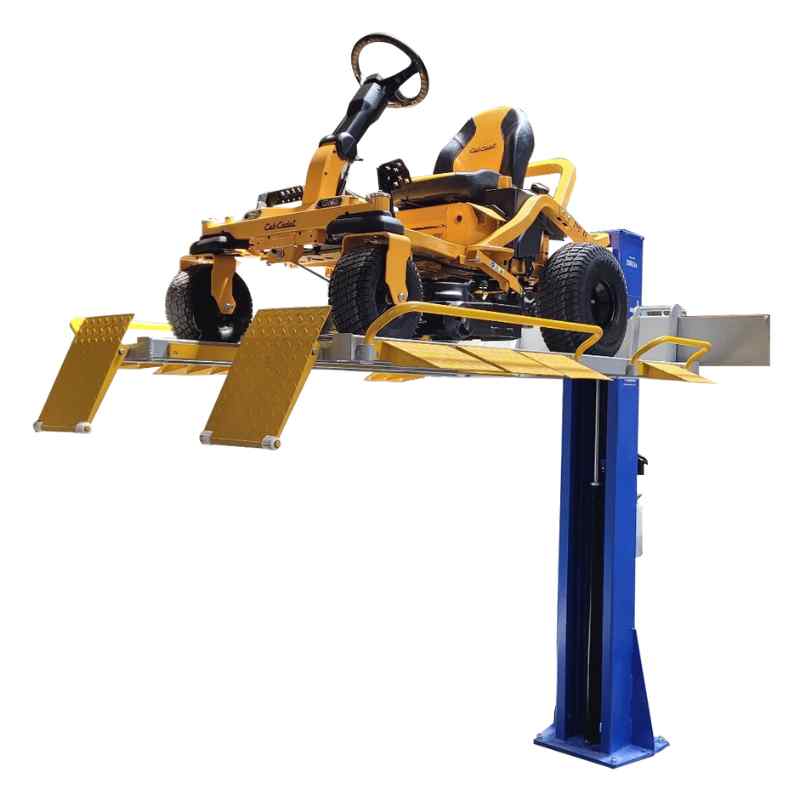

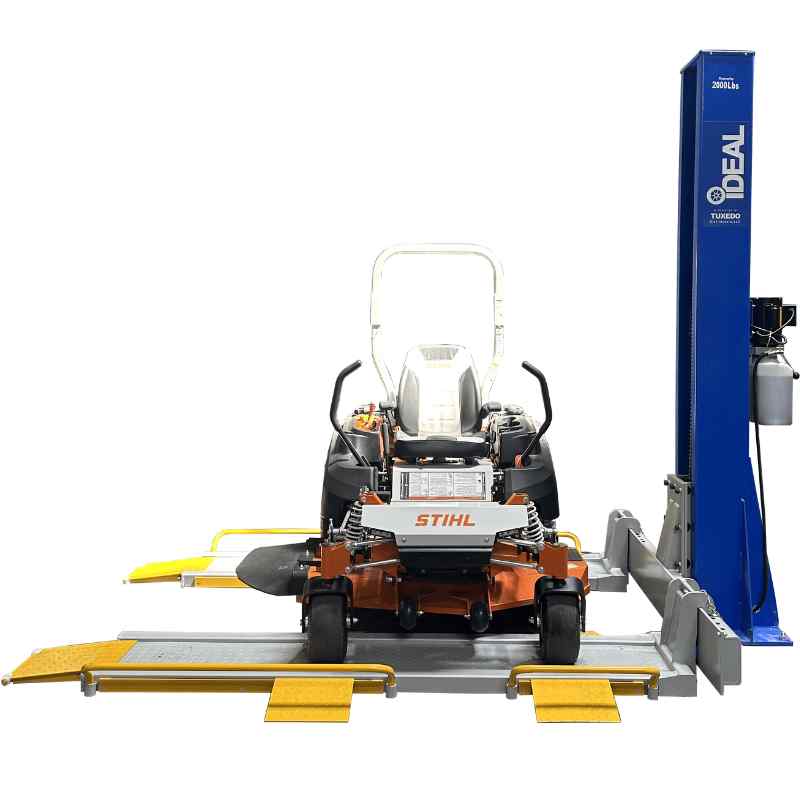

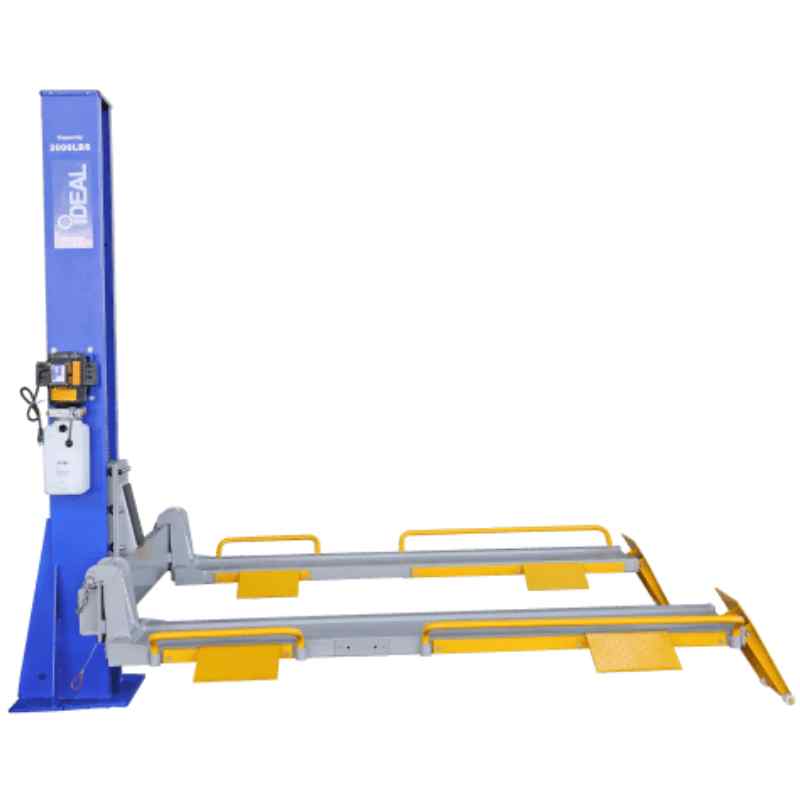

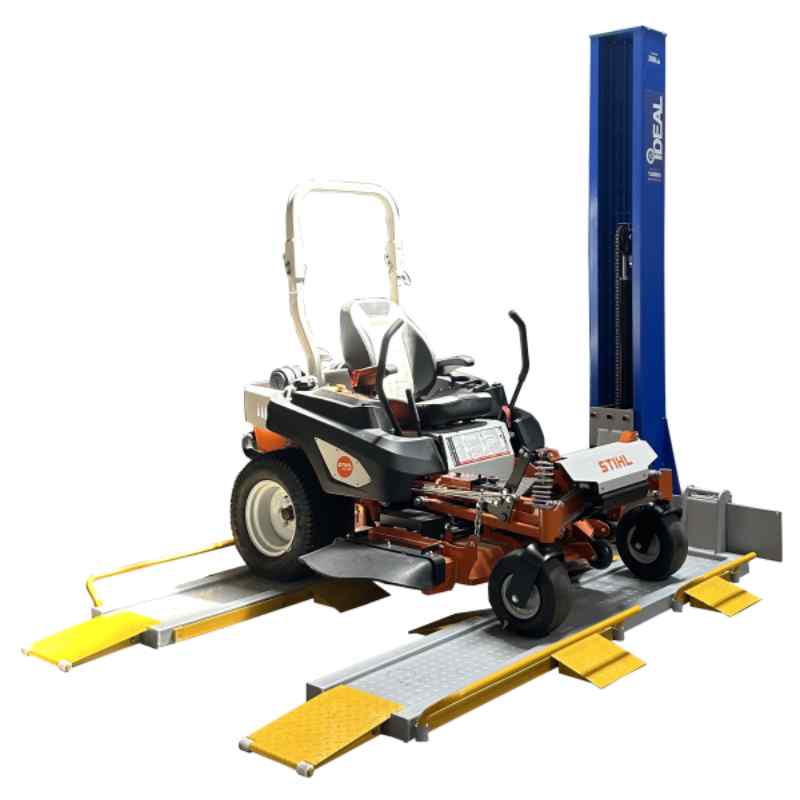

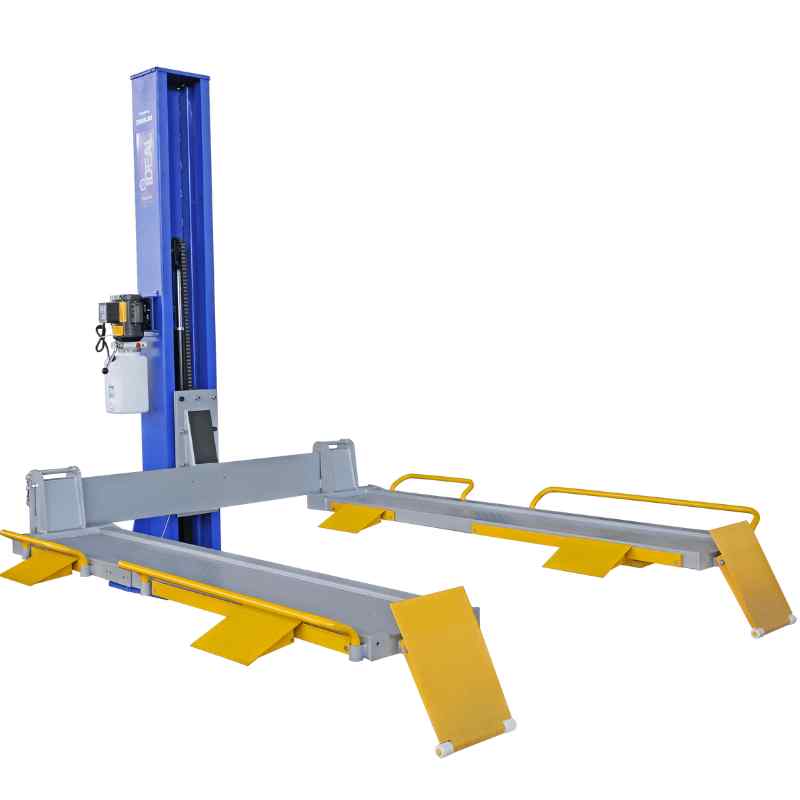

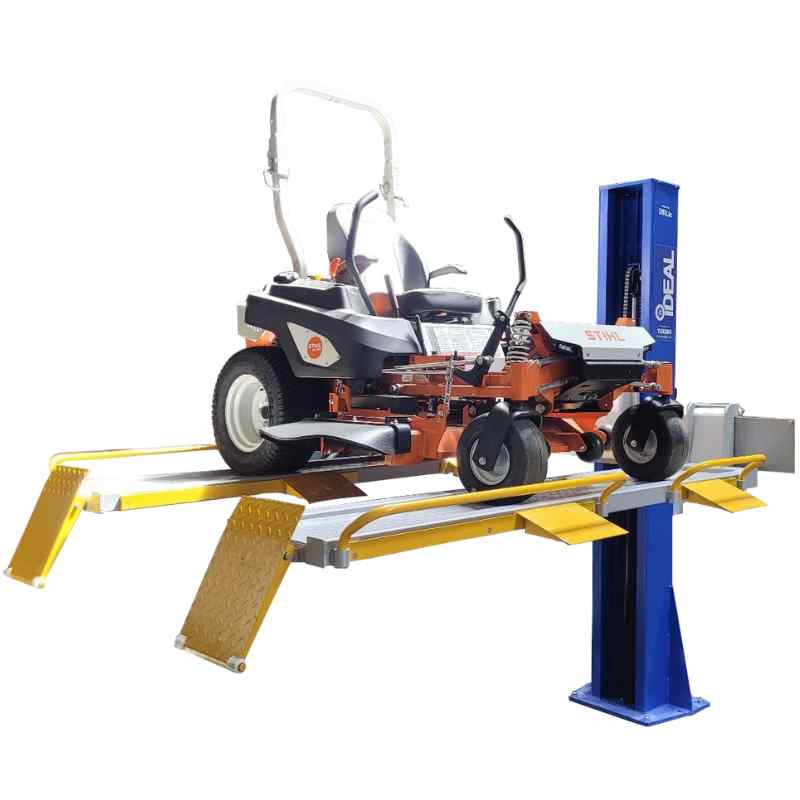

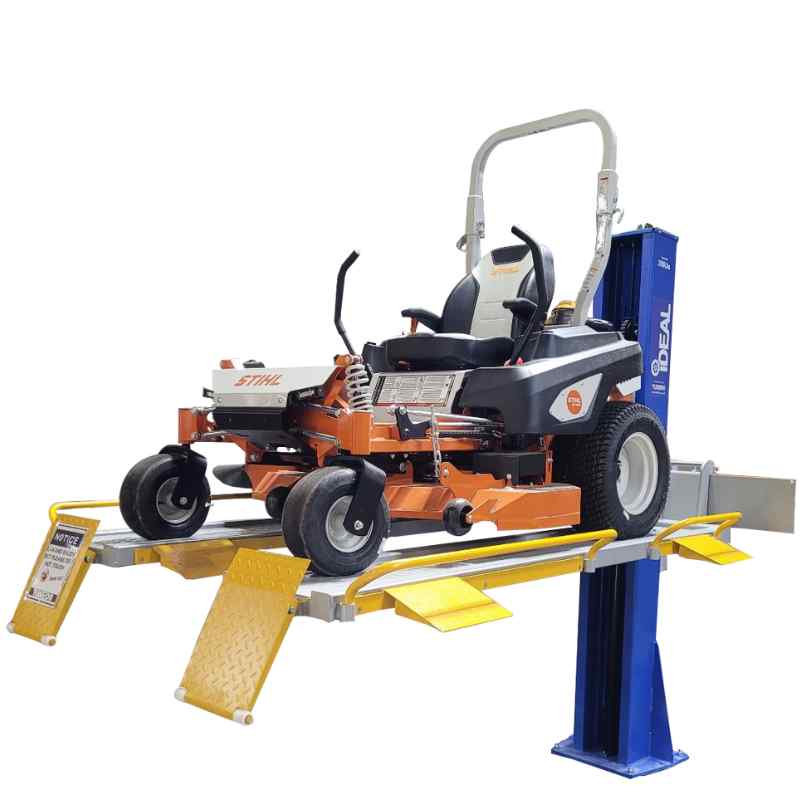

Ideal SC-2K-UTV-X 2,000lb Mower Lift Single Column Lift - 110V Duro Included
USD 3,423
USD 4,890
Description
The iDEAL SC-2K-UTV-X Service Lift is a versatile, multi-purpose lifting solution designed for efficient maintenance and storage of ATVs, UTVs, golf carts, riding mowers, and small utility vehicles. Built for both professional and residential use, this innovative lift combines strength, flexibility, and safety with a 2,000 lb capacity and a multi-adjustable dual-platform design that adapts to a variety of vehicle widths and wheelbases.
The low-profile platforms make loading and unloading easy, while the hydraulic chain-driven system, powered by a 115V DURO power unit, ensures smooth, reliable lifting. With 20 locking height positions and quick-release locking mechanisms, operators can secure vehicles safely at multiple working heights.
The SC-2K-UTV-X also includes eight quick-adjust steel side ramps, removable wheel stop bars, and adjustable platform widths for superior versatility. Its durable powder-coated finish, heavy-duty construction, and single-point lock release provide long-lasting performance and user convenience—making it a smart choice for shops, service centers, and enthusiasts alike.
Key Features
2,000 lb Lifting Capacity — Suitable for most ATVs, UTVs, golf carts, and riding mowers.
Dual Adjustable Platform Design — Accommodates multiple vehicle widths with retractable roller brackets.
Front or Side Loading Capability — Simplifies positioning for different vehicle types.
Extended Lifting Height — Provides up to 81.3″ of maximum lift with 20 locking positions.
Low-Profile Deck — Allows easy drive-on access for low-clearance vehicles.
Chain-Driven Hydraulic System — Ensures stable, efficient operation.
115V DURO Power Unit — Reliable, single-phase electric/hydraulic operation.
Quick-Release Locking Mechanism — Streamlines platform adjustment and safety locking.
Multi-Position Ramps and Wheel Stops — Provide flexibility for various equipment sizes.
High-Quality Construction — Heavy-duty steel frame with a durable powder-coated finish.
Adjustable Platform Width: 52.8″ – 84.6″ (OD) / 35.4″ – 67″ (CL).
Easy Maintenance & Portability — Optional power unit mounting on front, side, or rear of column.

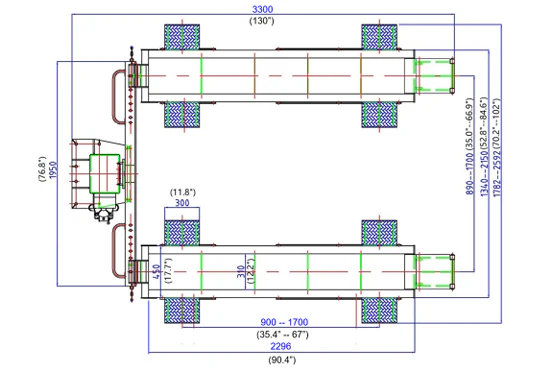

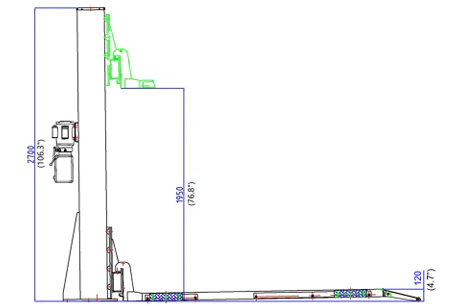

Specifications
SpecificationDetails
| Model | SC-2K-UTV-X |
| Capacity | 2,000 lbs |
| Overall Width | 102″ |
| Overall Height | 106.3″ |
| Overall Length | 130″ |
| Maximum Clearance Under Platforms | 76.8″ |
| Platform Min Height | 4.7″ |
| Platform Max Height | 81.3″ |
| Platform Width | 17.7″ |
| Runway Width | 12.2″ |
| Platform Length | 90.4″ |
| Adjustable Platform Width (OD) | 52.8″ – 84.6″ |
| Adjustable Ramp Width (CL) | 35.4″ – 67″ |
| Locking Positions | 20 |
| Shipping Weight | 1,624 lbs |
| Power | 115V / 20 Amp / 1PH |
SC-2K-UTV-X Manual
