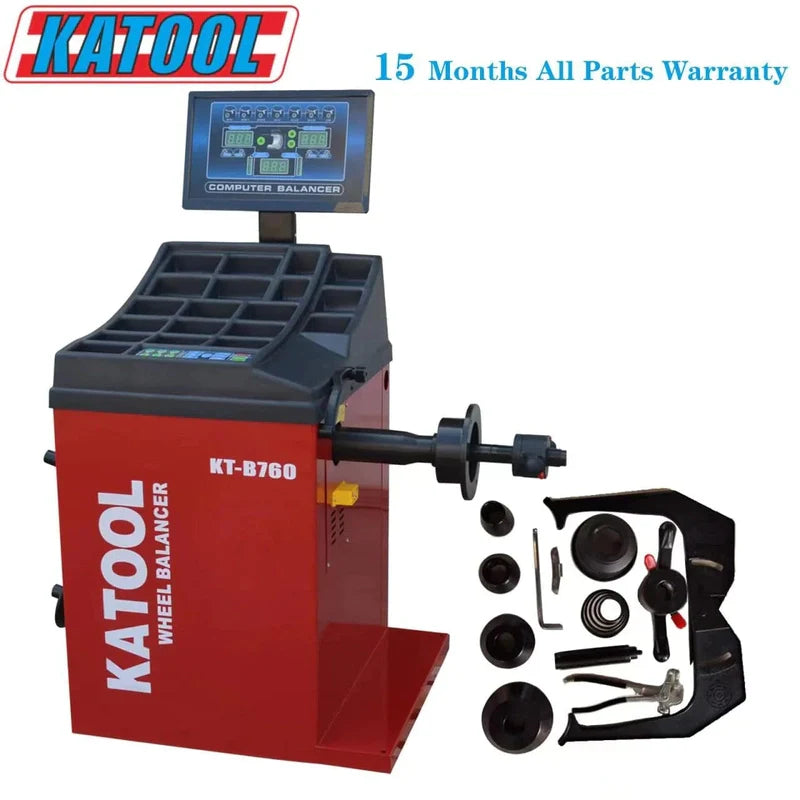

Katool KT-B760 Wheel Balancer
USD 899
USD 1,284
Description
The Katool KT-B760 Wheel Balancer delivers professional-grade precision and efficiency, making it an excellent choice for workshops seeking reliable and accurate wheel balancing. Constructed from 3mm-thick high-strength steel with reinforced welding, it minimizes vibration for enhanced stability and smoother operation. Its integrated pressure sensor support system, featuring 8mm-thick bottom and side panels, ensures consistent, high-precision measurements.
Powered by a top-tier motor with pure copper windings, the KT-B760 provides superior performance, rapid heat dissipation, and an extended service life. The advanced computer board, manufactured with moisture-proof, dust-proof, and anti-static welding technology, ensures long-lasting durability in demanding environments. Offering multiple balance modes to accommodate different rim types, this machine guarantees precise and repeatable results. Additionally, the built-in fault diagnosis and dual-sided self-calibration system simplifies setup and operation, making the KT-B760 user-friendly and dependable.
Key Features
Automatic Measurement System: Automatically inputs A and D values for faster setup and improved accuracy.
Reinforced Steel Construction: 3mm-thick steel body with solid welding minimizes vibration and increases durability.
Integrated Sensor Support: 8mm-thick bottom and side panels enhance sensor stability and precision.
High-Performance Copper Motor: Provides more power, better heat dissipation, and longer service life with reduced defect rates.
Hardened Shaft (36mm): Quenching treatment increases strength and resistance to wear.
Advanced Control Board: Built to be moisture-proof, dust-proof, and anti-static for consistent long-term performance.
Multiple Balance Modes: Optimized for various rim types to ensure accurate balancing results.
Self-Diagnostics & Dual Calibration: Built-in fault detection and double-sided calibration simplify user operation — no preset parameters required.
Measurement Unit Flexibility: Select between Ounce/Gram or MM/Inch for different applications.
Stable Power System: High-quality integrated power board ensures reliable and consistent performance.
Optional Additions: Wheel guard for safety and an extended shaft compatible with wider wheels.
Specifications
SpecificationValue
| Rim Diameter | Up to 30" |
| Wheel Width | 3" – 12" |
| Max Wheel Diameter | ≤ 880 mm (34.64") |
| Balancing Speed | 180 RPM |
| Power Supply | 110V / 1PH |
| Motor Power | 0.25 kW |
| Rim Center Hole Diameter | ≤ 135 mm (5.31") |
| Max Wheel Weight | ≤ 65 kg (143 lbs) |
| Balancing Accuracy | ±1 g |
| Measuring Time | 7 seconds |
Warranty & Support
Katool provides a 1-year limited warranty covering all parts and manufacturing defects at no cost. An optional 2-year extended warranty is also available for Katool and M&E automotive equipment.
Warranty Coverage Includes:
Motors, power units, cylinders, displays, and electronic components
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
Claims must be submitted within the warranty period.
Warranty is non-transferable and requires proof of purchase or an order number from an authorized vendor.
Replacement parts and shipping are covered free of charge.
All claims must be approved by Katool’s warranty/service department.
Photos or videos may be requested for defect verification.
Do not disassemble the equipment before receiving authorization.
Equipment outside warranty coverage will require the buyer to pay for replacement and shipping costs.
Labor costs are not included under warranty coverage.
