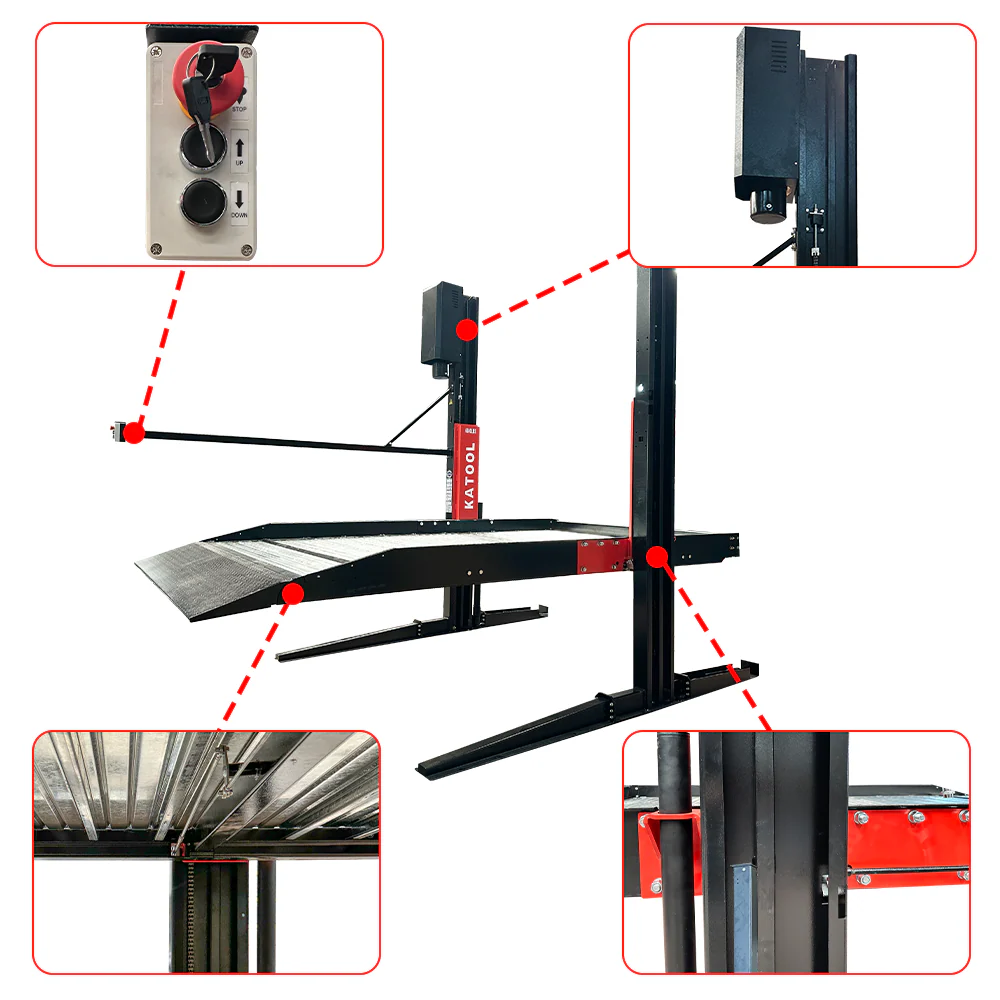

Katool KT-P2700 6,600 lb 2-Post Hydraulic Parking Lift

The Katool KT-P2700 is a compact and efficient 2-post hydraulic parking lift designed to maximize space while providing safe, reliable vehicle storage. Built to support up to 6,600 lbs, this lift is ideal for residential garages, commercial parking facilities, and workshops that need to stack vehicles vertically without permanent structural changes.

Offering a lifting height of 82.68 inches and a low minimum height of just 3.94 inches, the KT-P2700 accommodates everything from sedans to SUVs and light-duty trucks. Its durable hydraulic system ensures smooth lifting and lowering, completing cycles in as little as 60–80 seconds up and 40–60 seconds down. Powered by a versatile 110V or 220V motor, it integrates seamlessly into most electrical environments.

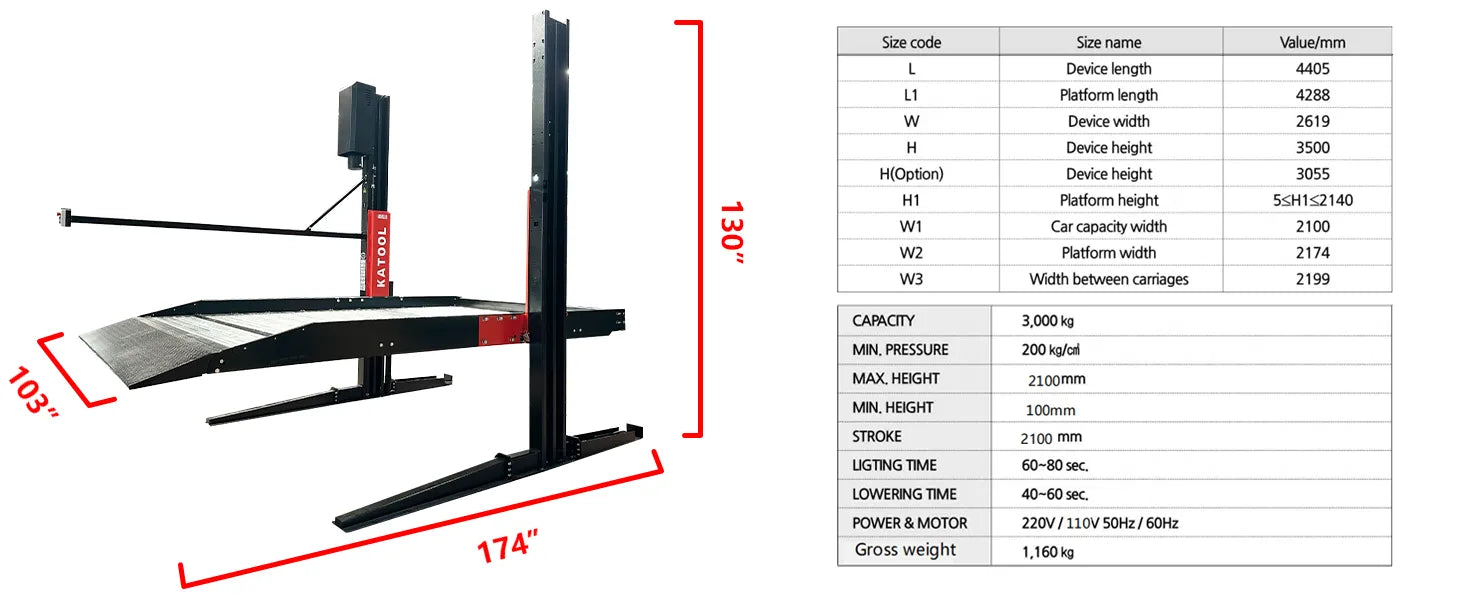

Specifications

• Lifting Capacity: 6,600 lbs

• Minimum Pressure Requirement: 2,844 psi (200 kg/cm²)

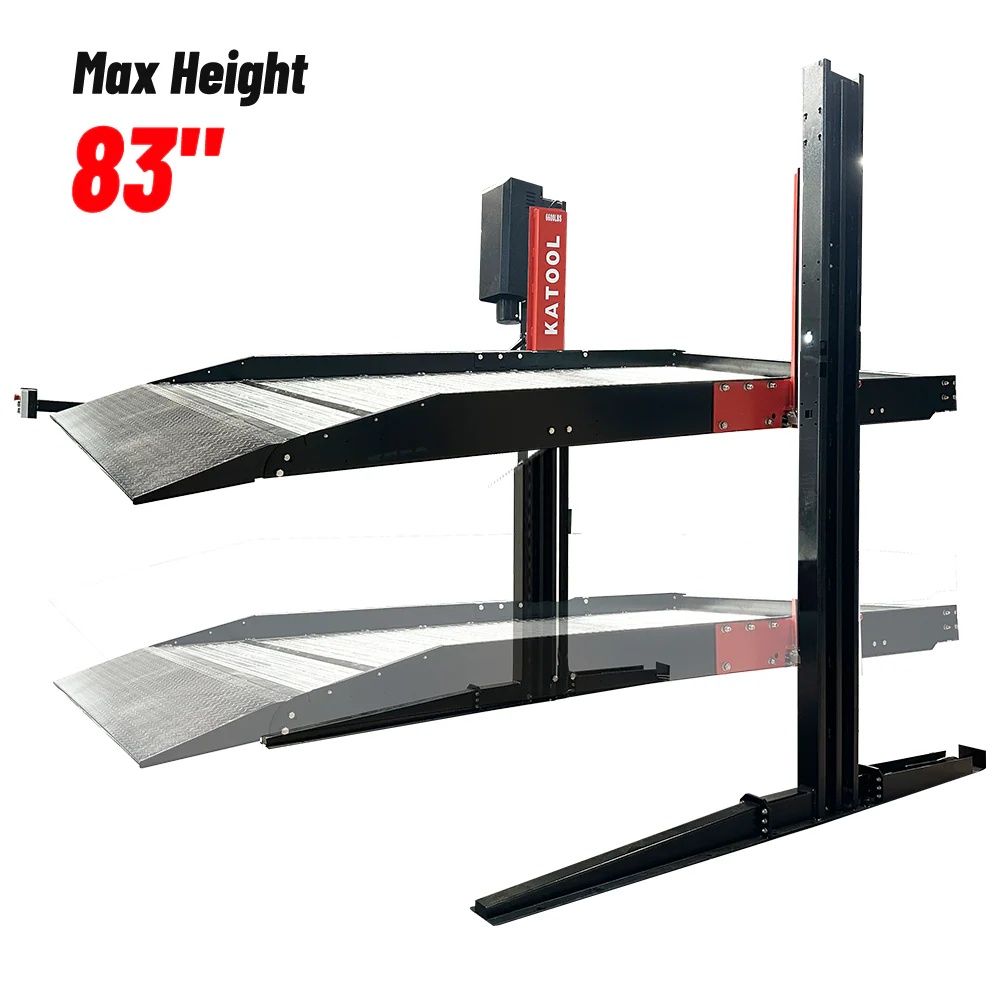

• Maximum Height: 82.68 in (2100 mm)

• Minimum Height: 3.94 in (100 mm)

• Stroke: 82.68 in (2100 mm)

• Lifting Time: 60–80 seconds

• Lowering Time: 40–60 seconds

• Power Supply: 220V / 110V, 50Hz / 60Hz

• Gross Weight: 2,557 lbs (1,160 kg)

Key Features

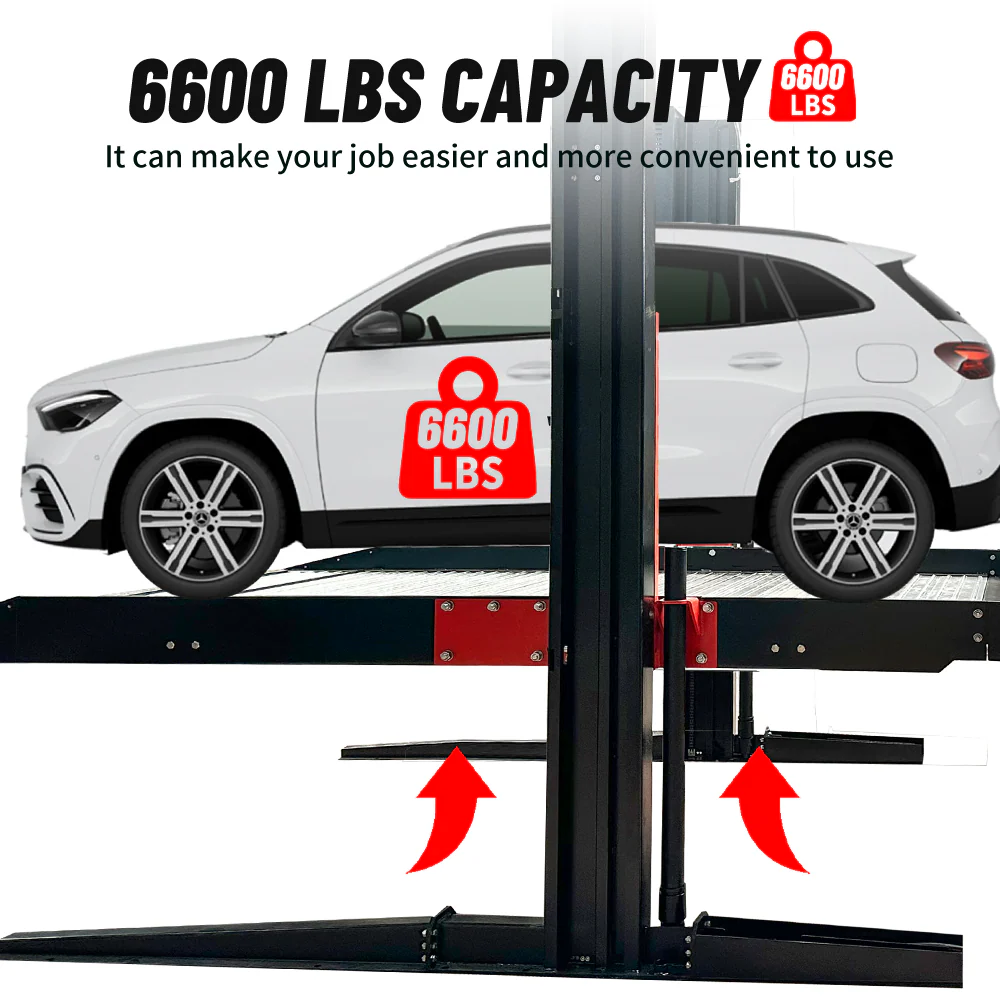

• Supports vehicles up to 6,600 lbs

• Space-efficient 2-post design for vertical vehicle stacking

• Smooth hydraulic operation for quick lift and descent cycles

• Suitable for residential, commercial, and workshop applications

• Low-profile platform for easy vehicle loading and unloading

• Durable steel construction for long-term performance and stability

• Dual voltage compatibility (110V/220V) for flexible installation options

The Katool KT-P2700 combines safety, functionality, and compact design — making it the perfect parking solution where space and reliability matter most.
