Launch Tech USA TLT240SB 9,000 lb Two Post Floor Plate - Symmetric
USD 2,646
USD 3,780
Description

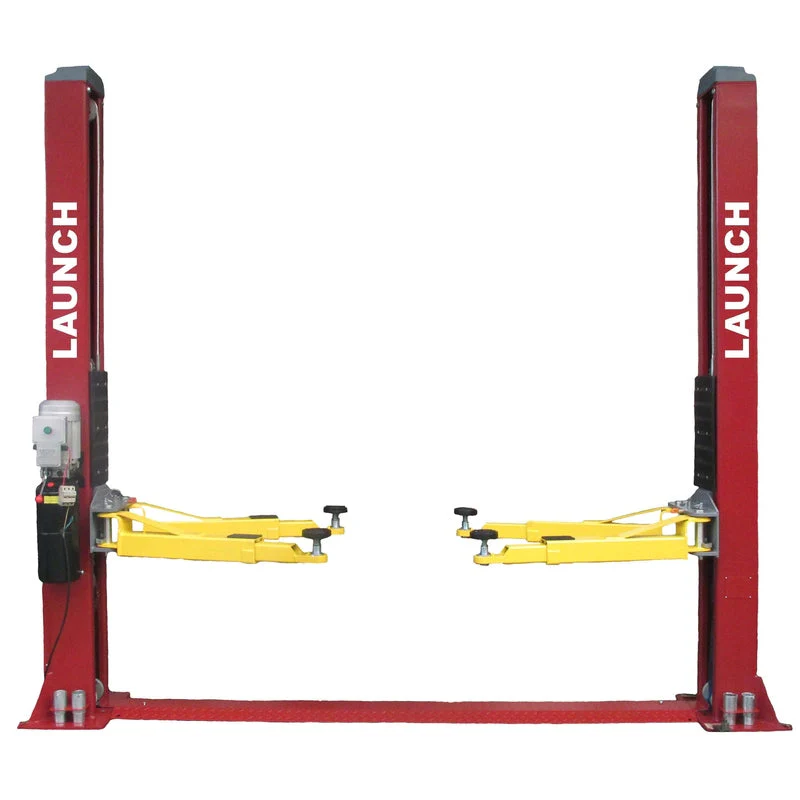

The Launch TLT240SB-R 9,000 lb. 2-Post Baseplate Lift is a commercial-grade lifting system built for reliability and performance. Featuring a baseplate design with symmetric straight-column posts and arms, this lift is perfectly suited for pickup trucks, SUVs, and passenger cars.
Its chain-driven cylinders and dual-point lock release system offer smooth, durable operation — a proven design trusted by professionals for years. The TLT240SB-R also includes rubber door guards, hose guards, and double telescoping screw pads with stackable adapters for added versatility and protection.
Ideal for both professional shops and enthusiasts, this lift provides consistent lifting power, straightforward operation, and a space-efficient design backed by Launch’s industry-leading support.
Key Features
9,000 lb. lifting capacity — ideal for cars, SUVs, and light trucks
Symmetric arm configuration with straight column posts
Baseplate design for low-ceiling applications
Chain drive system for dependable lifting performance
Dual-point lock release for smooth operation

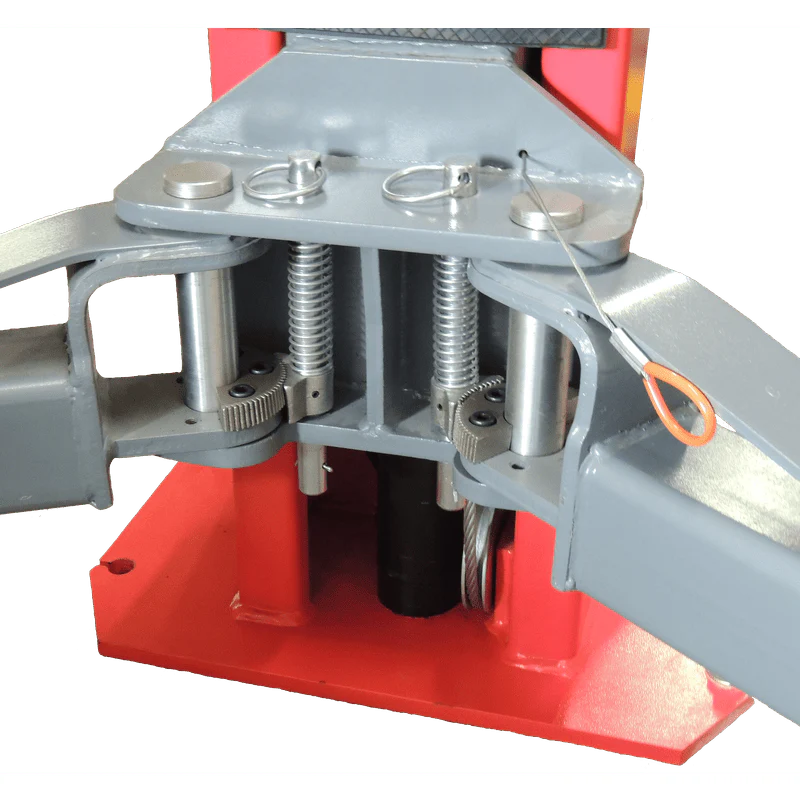

Heavy-duty arm restraint system for stability and safety

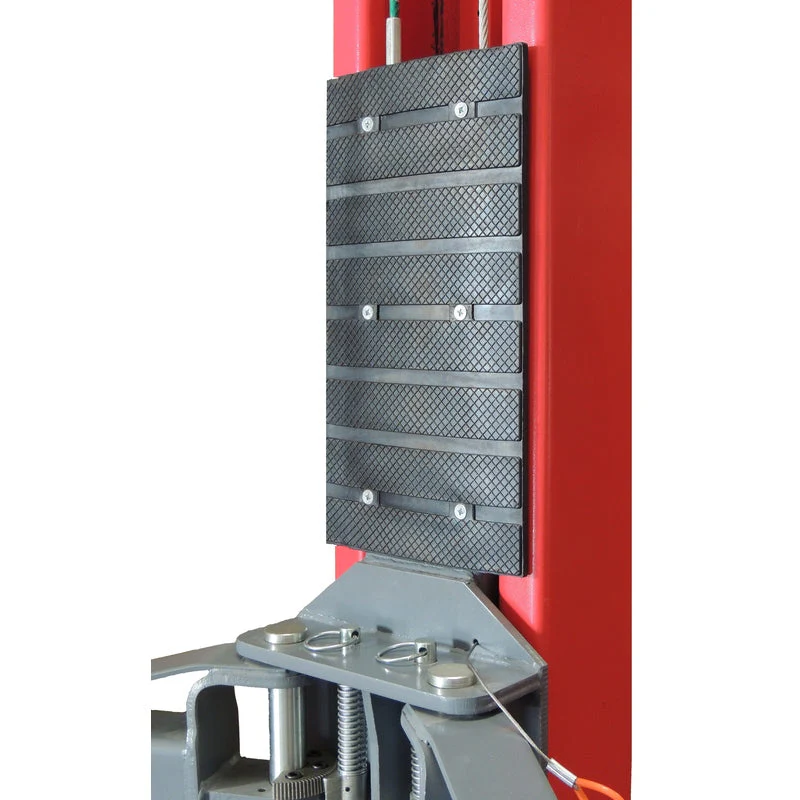

Rubber door guards to protect vehicle finishes

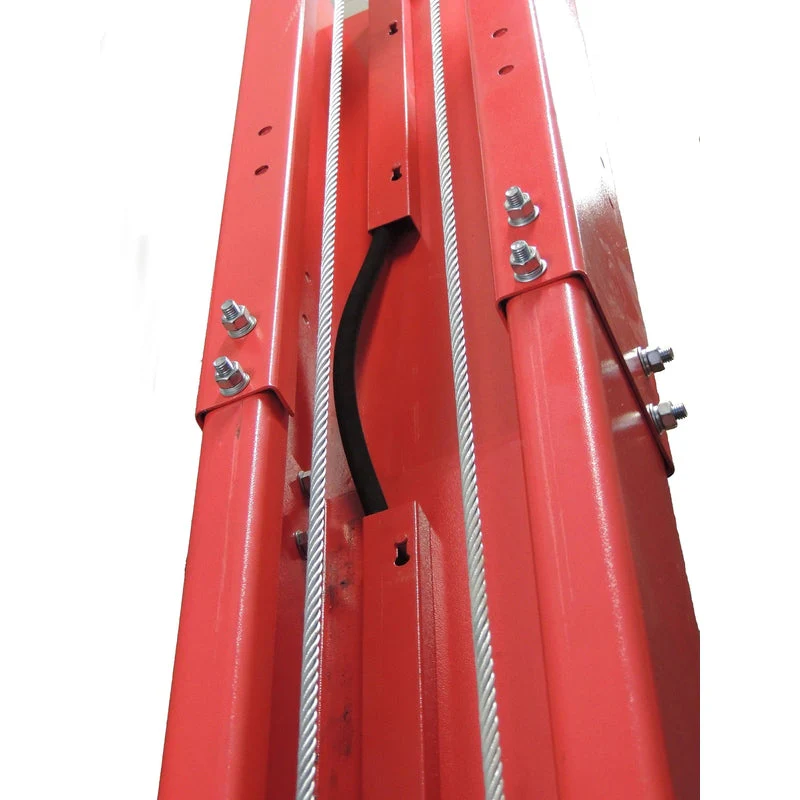

Hose guards for added durability

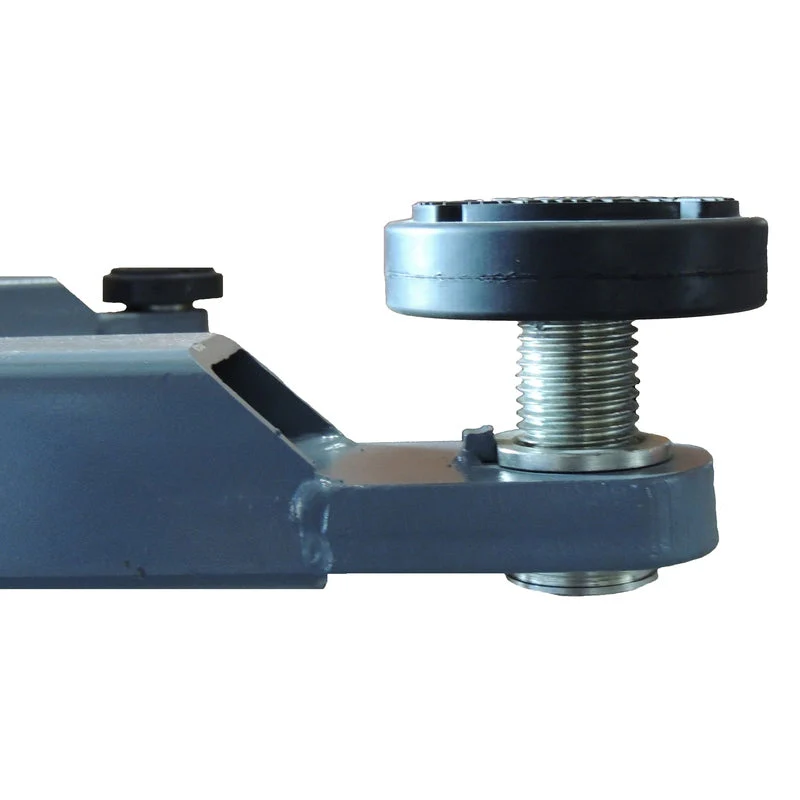

Double telescoping screw pads for precise contact

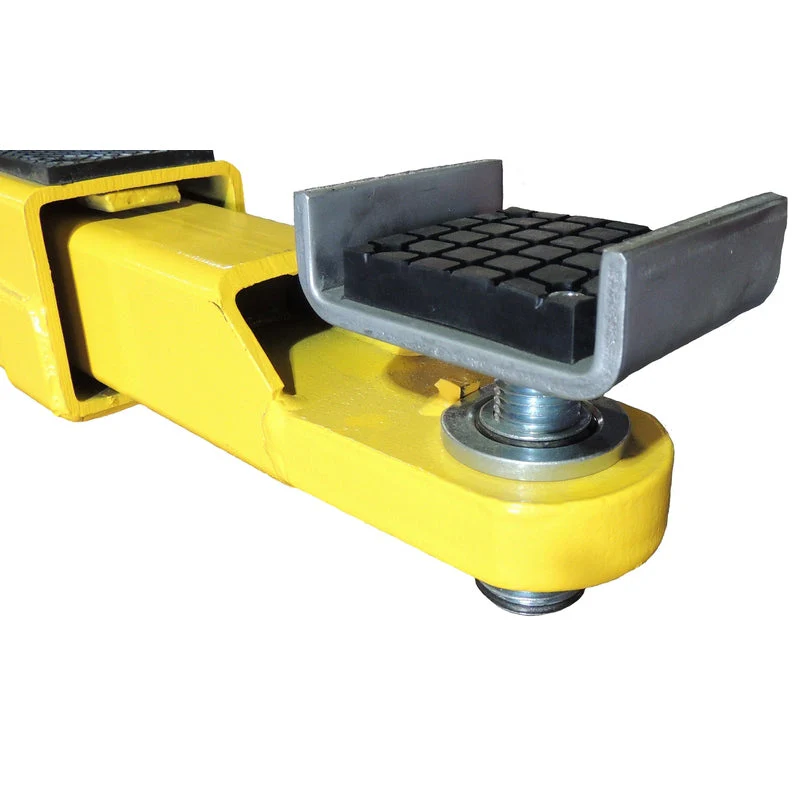

Stackable foot pad adapters included

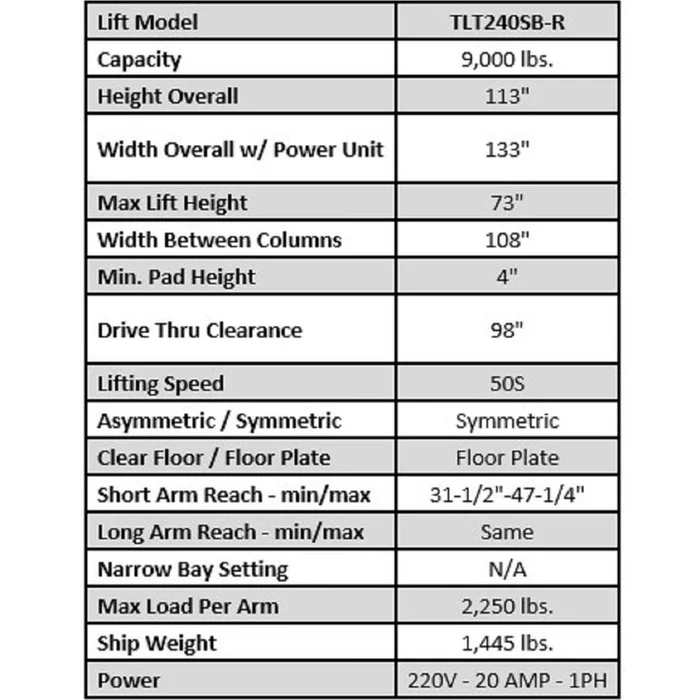

Specifications
SpecificationDetail
| Model | TLT240SB-R |
| Capacity | 9,000 lbs |
| Overall Height | 113″ |
| Overall Width (with Power Unit) | 133″ |
| Max Lift Height | 73″ |
| Width Between Columns | 108″ |
| Min. Pad Height | 4″ |
| Drive-Thru Clearance | 98″ |
| Lifting Speed | 50 sec |
| Configuration | Symmetric |
| Design Type | Floor Plate |
| Arm Reach (Short / Long) | 31.5″–47.25″ / Same |
| Max Load Per Arm | 2,250 lbs |
| Power Requirement | 220V, 20 Amp, 1PH |
| Shipping Weight | 1,445 lbs |
